L series
The MAGNASPHERE L Series offers remarkable ferrous metal proximity sensing (needs no magnet actuator) in such a compact, low cost two-wire switch.
It can also be configured as a magnetically tamper resistant device. The switch’s robust all metal construction and design make it highly resistant to permanent contact welding due to power surges.
Responds within a restricted zone
Resistant to electromagnetic interference
Virtually unbreakable
General Information
Construction: Non-Ferrous Metal Housing, Compression Seal Hermetically Sealed, Protective Gas Atmosphere, Precious Metal Plated Spherical Magnet Contact.
Soldering Guidelines: 600º F (315º C) Temperature iron for 5 sec. (max.). Do not solder within 1/8” (3 mm) of glass seal. Lead pins precious metal plated for enhanced solderability.
Termination Polarity Guidelines: Polarity selection is non-critical, though some life gain may be realized by center pin as cathode on logic loads, but center pin as anode on larger loads.
Lead Wire Cutting / Bending Guidelines: Cut length has no effect on magnetic OP/REL values. Shearing action type cutters are recommended, but end nippers and side cutters are NOT recommended. Metal style seals are extraordinarily rugged, but the bending of unsupported lead wire pins adjacent to the glass seal is not recommended (i.e. when bending use the support of some type of parallel jaws spaced away from the glass seal to grip the lead wirepins while bending the pins’ free ends, so no bending strains are imposed on the glass seal.
Other Comments: Ferromagnetic materials and strong Electromagnetic devices proximate to the switch or its actuator magnet may adversely affect expected OP/REL switching values. Experimentation is recommended to investigate areas of concern.
Sensing Zone
Contact Characteristics
Contact Form:
B (Normally Closed-N.C.)
Contact Material:
Gold/Gold
Initial Contact Resistance (Typical):
< 150 Milli Ohms
Contact Capacitance:
< 1 pf Contact Ratings: 30 VDC @ 250 ma
Contact Bounce* (Typical):
< 10 milliseconds*. Recommended trial de-bounce – 15 milliseconds (min.) closed contact condition for logic state changes – or 30 Hz low pass filter buffer
Minimum Breakdown Voltage (Typical):
300 VDC
Insulation Resistance (Typical):
> 5 Mega Ohms
Operational Characteristics
Operate/Release Values:
See Switching Characteristics Table
Magnet Orientation:
Either Pole
Maximum Operating Frequency:
20 Hz
Mounting Position:
Any Plane
Operating Temperature:
-40°C to +85°C
Shock (Switch Damage):
> 100 G’s
Vibration:
10-15 G’s (80-450 Hz) (Higher Values Available)
Switching Characteristics

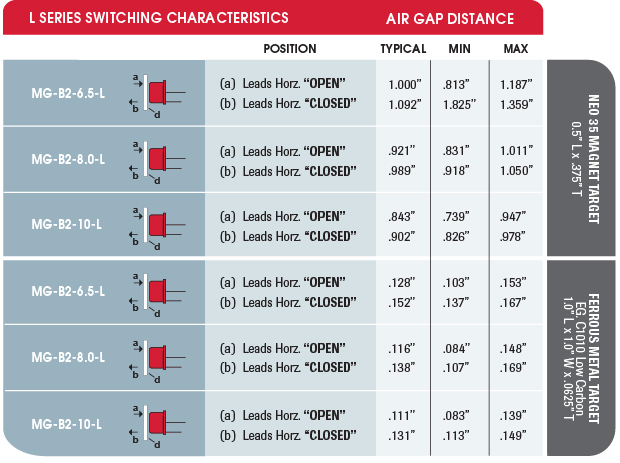

L SERIES: Switching characteristics the target moves closer (a), this normally closed switch will OPEN at the air gap distance (d), and CLOSE when the target moves away (b).
