Proximity Switch & Magnet 1597
Mechanical and Electrical Specifications
Electrical Configuration
Open Circuit With Target In Place (FORM B / N.C. Switch)
Max Current:
0.25A Max
Voltage:
30 VDC Resistive
Max Power:
.25 W
Typical Actuation Distance:
.47” [12mm] (w/ Included Magnet Module)
Mounting:
Recessed / Press Fit
Color(s):
Black ABS (Flame Rated: 94HB min)
Wire Leads:
JACKETED 22 AWG x 24" L [61cm]

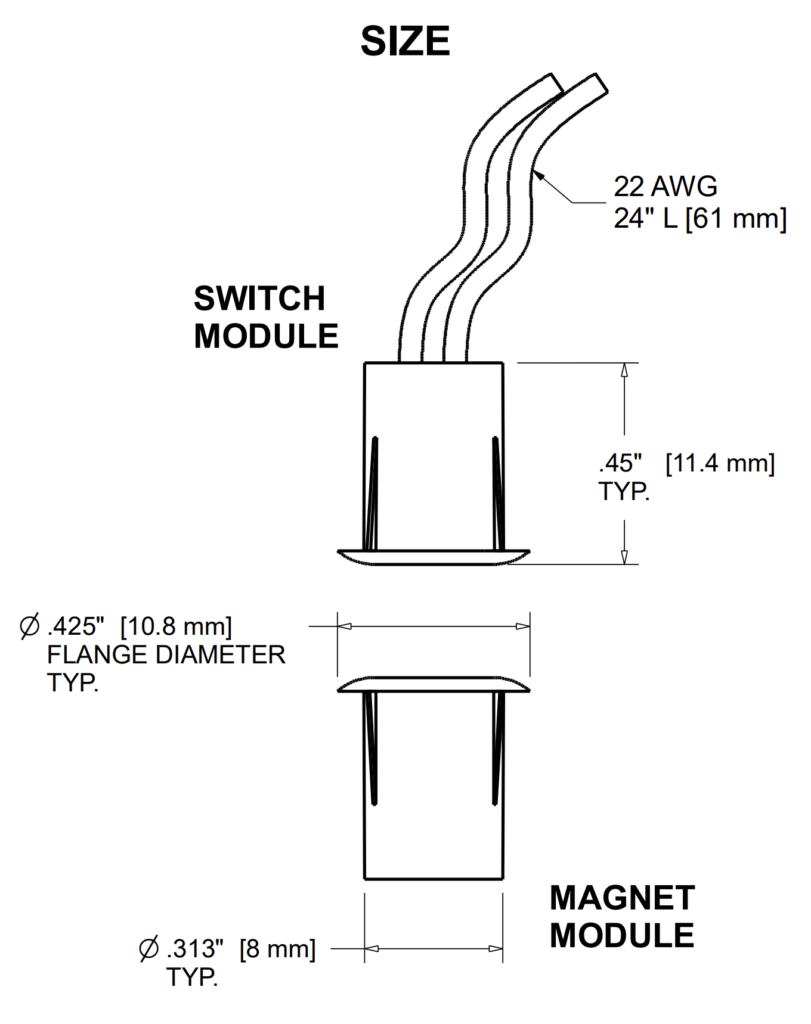

Dimensions
