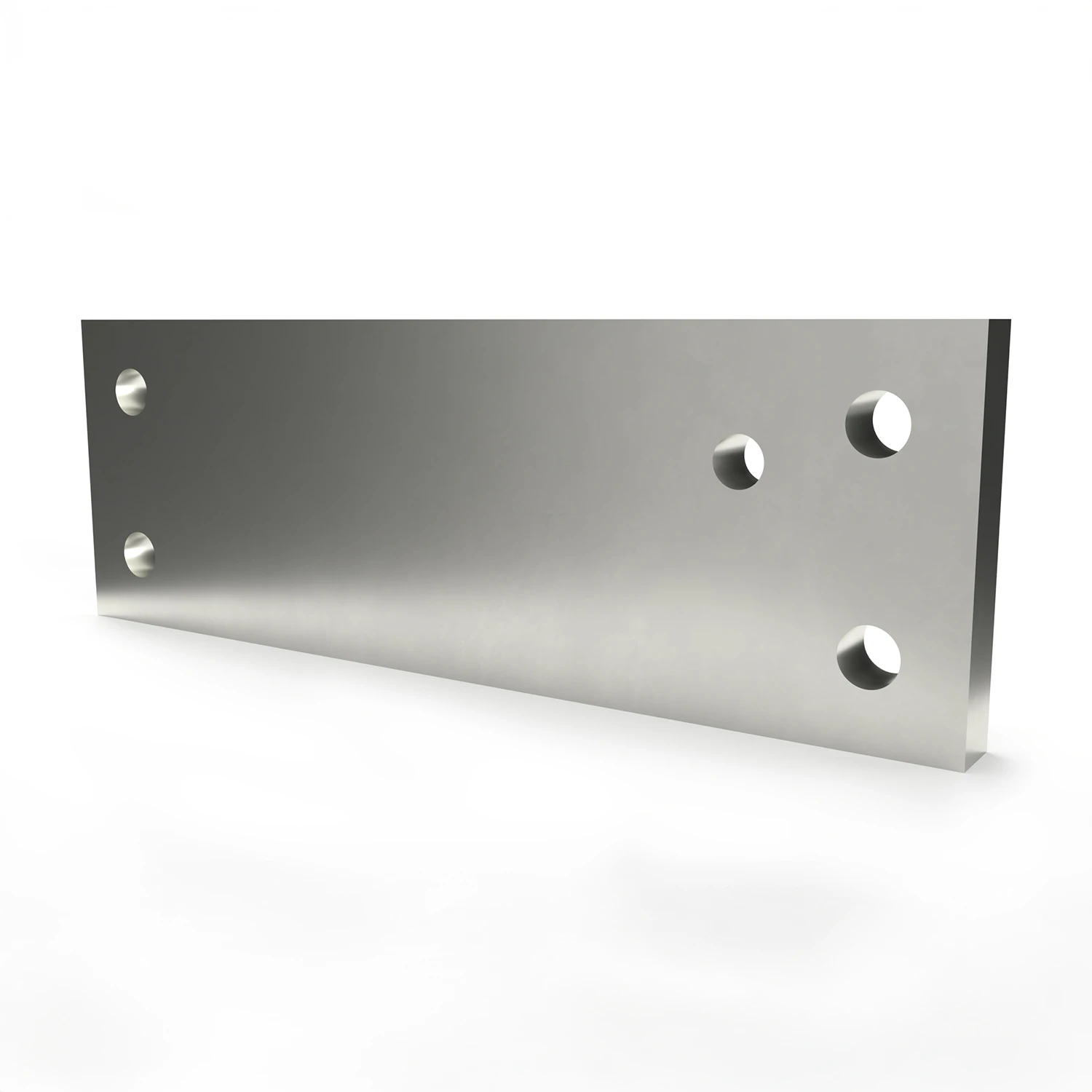

HSS L2S & L2D
HSS L2D (dual) & HSS L2S (single)
Magnasphere’s HSS L2D UL-634 Level 2 Dual and HSS L2S UL-634 Level 2 Single alarm contacts meets the highest security standards set by UL. Available with embedded resistors, UL-10C fire ratings and custom length armored cable lengths. The L2S series meets ICD-705 requirements and are the most secure door contacts in the world.
This product is also available for use with UL-rated fire doors and frames.
Specifications and dimensions
Size:
4.25″ L x1″ W x 1.5″ H
[107.9 mm x 25.4 mm x 38.1 mm]
Max Gap:
3/16" (4.78mm)
Housing:
Aluminum Case, Silver-Gray Anodized
Electrical Specifications:
Max Current: 0.25A Resistive
Max Voltage: 30 VDC
Max Power: .25 W
Dual Configuration: Either (1) two Closed Loop alarm contacts or (2) one Closed Loop and one Open Loop alarm contacts. Closed Loop Tamper circuit.
Single Configuration: Closed Loop
Wire Lead:
#22 AWG, Solid Color-Coded and 36″ Armored Cable Standard. For other lengths, contact factory.
Operation Temp:
-40° C to 80° C

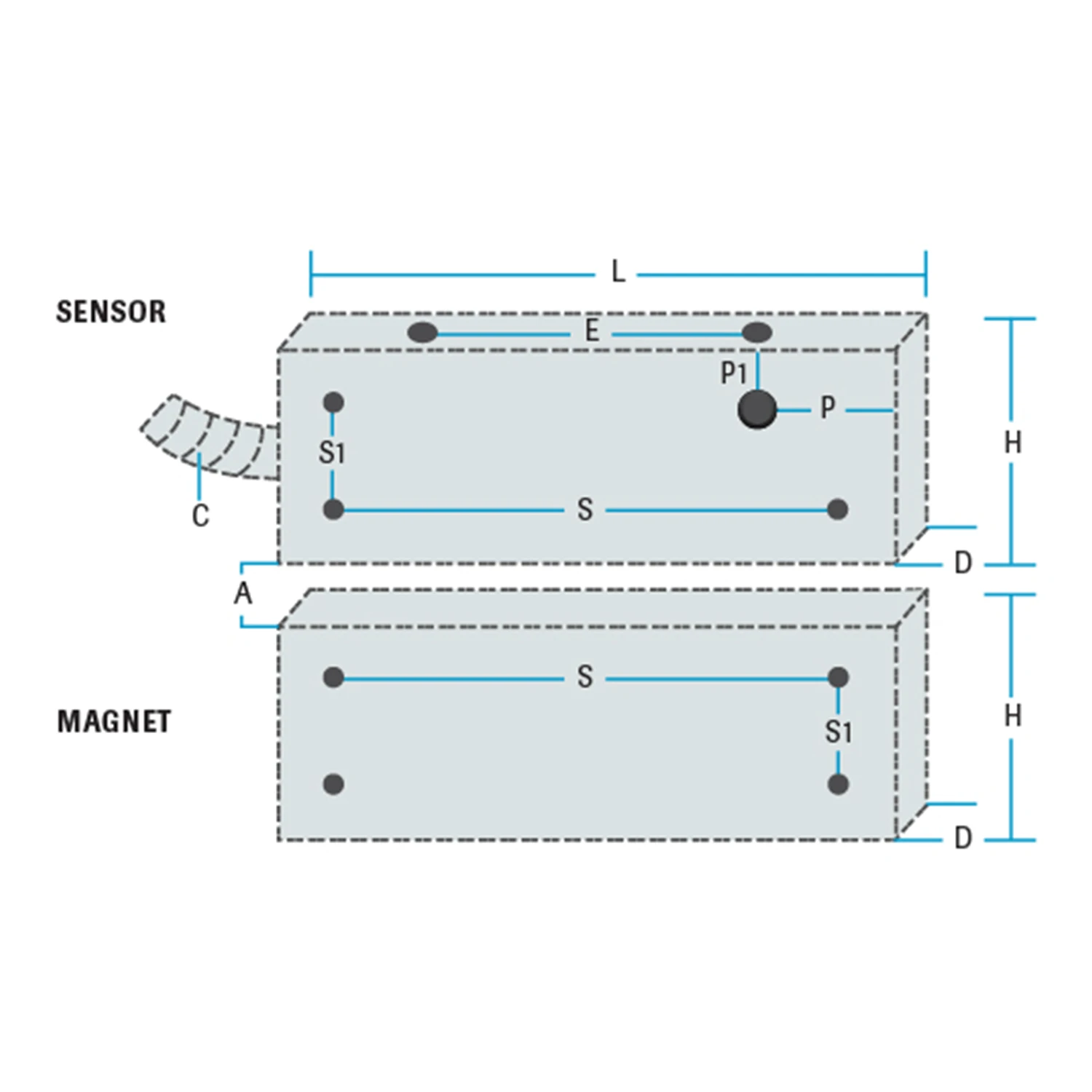

HSS-L2D Dual Alarm, Surface Mount Contact 4.25″ L x 1″W x 1.5″H
L 4.25” (107.9 mm)
H 1.5” (38.1 mm)
D 1.0” (25.4 mm)
S 3.5” ( 88.9 mm)
S1 0.75” (19.1 mm)
P 0.84” (21.3 mm)
P1 0.52” (13.2 mm)
E 3.03” (76.9 mm)
C 36.0” (914.4 mm) X 0.30″ (7.6 mm)
Stainless Steel Cable A
0.125″ (3.18 mm)
Actuation Gap
(recommended for maximum internal magnetic non-defeat characteristics)
