HSS L2C
The L2C series is the only concealed contact on the market listed to UL634 Level 2 High Security Standards, and the only concealed devices to incorporate patent removal / tamper circuits. The L2C offers models that can be installed in a 1” diameter hole.

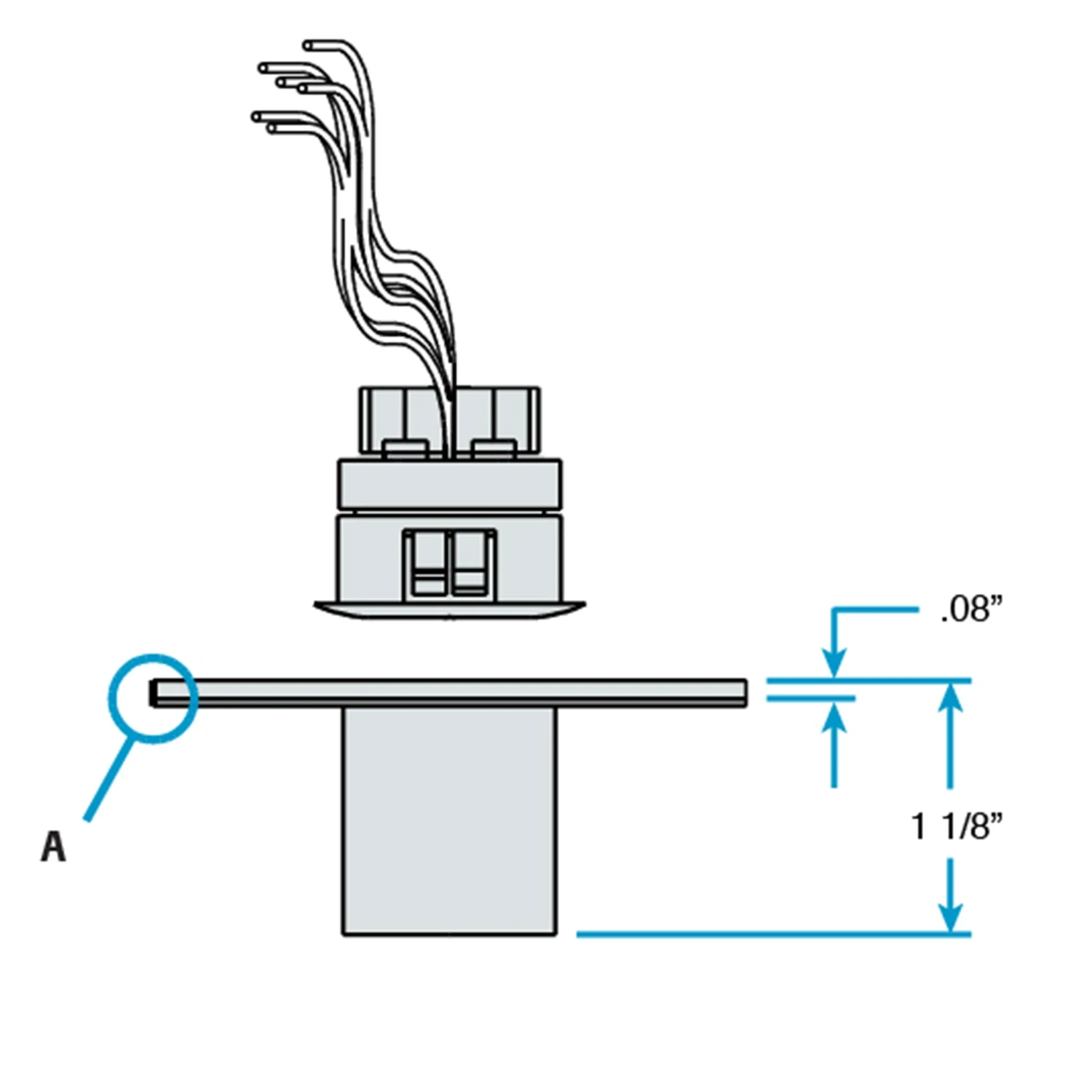

Specifications and dimensions
Size:
Switch: .98″ D x 1.02″H
(sized to Fit 1″ Hole)
Magnet: .94″ D x 1 1/4″ x 2 5/8″ Flange
Max Gap:
.125″ Gap for UL 634 Level 2 Installation
Housing:
Brass (Magnet Housing) and ABS (Switch Housing)
Electrical Specifications:
Max Current: 0.25A Resistive
Max Voltage: 30 VDC
Max Power: .25 W
Configuration: Single or Dual Alarm Contact(s), Closed Loop, with Closed Loop Tamper Circuit
Wire Lead:
#22 AWG, Solid Color-Coded, 12″L (30 cm)
Operation Temp:
-40° C to 80° C
HSS L2C Recessed / Concealed Contact 1″ Dia.
Installation Instructions
Installation Accessories
Architects & Engineering Specifications
Configuration Manual
Firmware
Information
Wiring Schematics
For High Security Sensor (HSS) Manufactured by Magnasphere Corp.
Magnasphere Corp. warrants its components to be free of defects in material and workmanship for a period of three (3) years from the original date of purchase. Within this warranty period, Magnasphere Corp. will repair or replace at its option any part providing it’s defective in material or workmanship.
To obtain service under this warranty, call Magnasphere Corp. at (262)347-0711, to obtain a return authorization, and return the product together with a dated proof of purchase receipt to:
Magnasphere Corp.
N19 W22931 Nancys Ct. Ste. 3
Waukesha, WI 53186 USA
