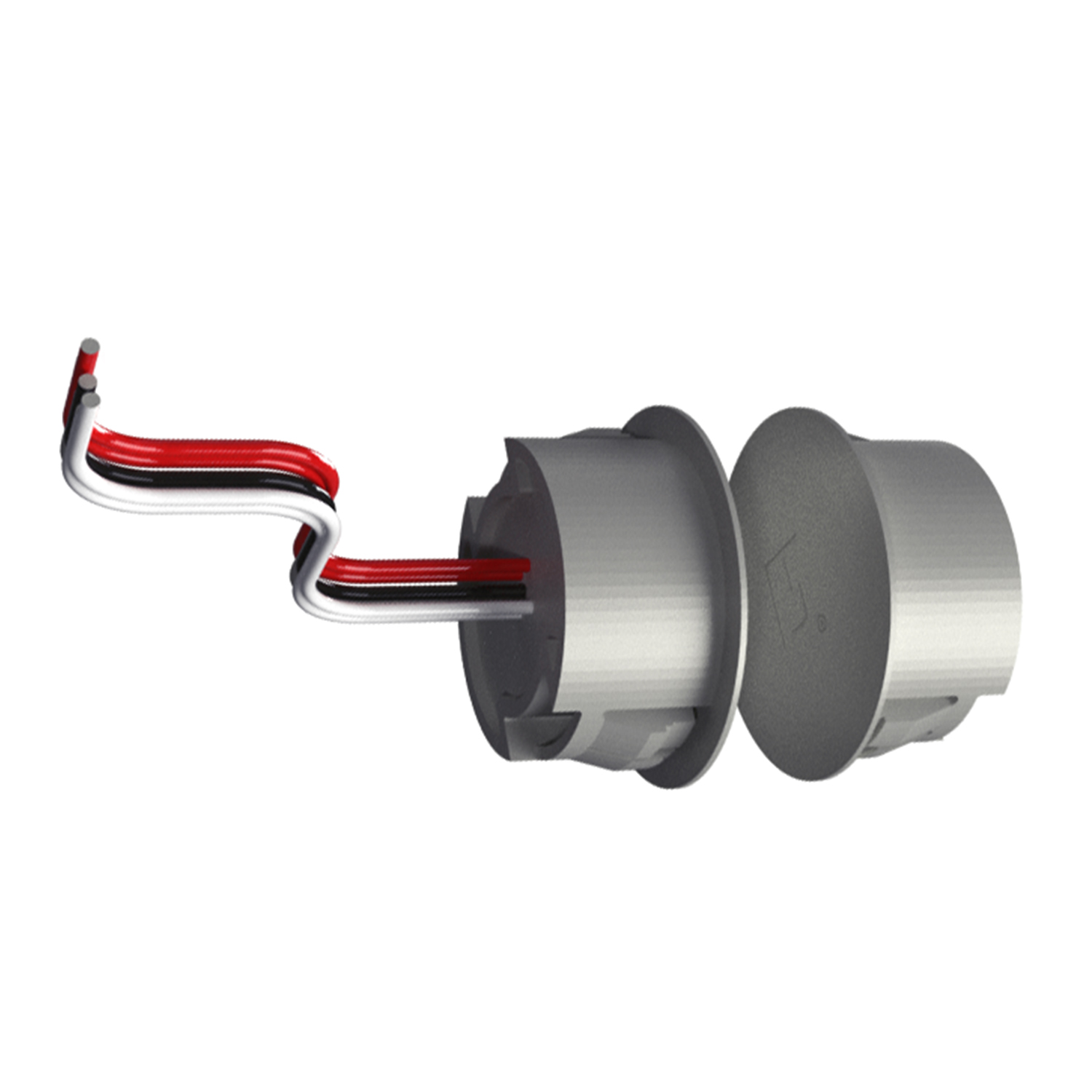

MSS-300C + Fire Series
The MSS-300 Series recessed and surface-mount contacts offer two or three separate contact outputs. Ideal for installations where a single contact is desired for use with multiple independent systems, and home automation applications.
Available in UL-10C classified for use in fire rated doors
This product is also available for use with UL-rated fire doors and frames.

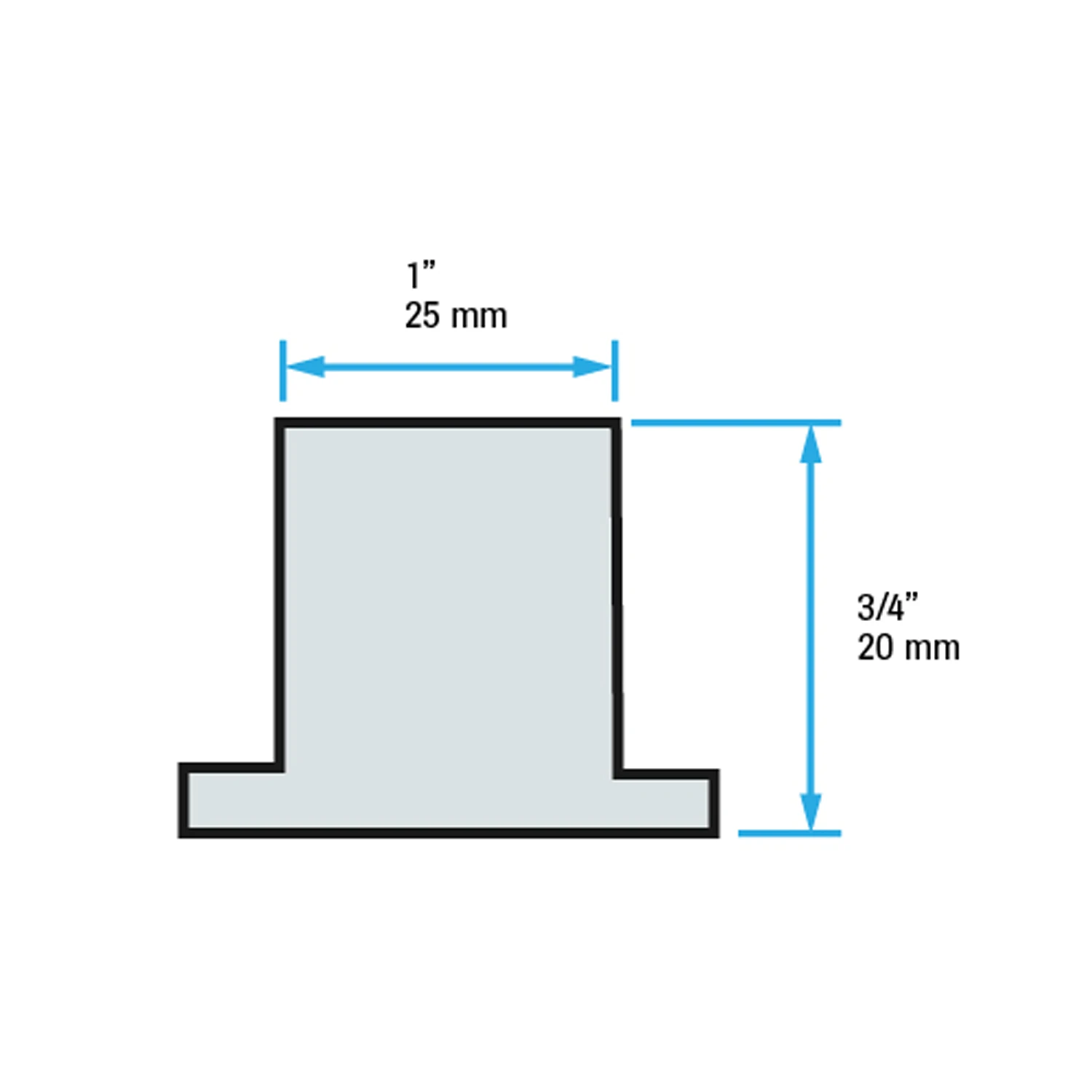

Specifications and dimensions
Size:
1″ dia. x 3/4″ L
(25.4mm x 19.1mm)
Max Gap:
1/4" (6.3mm), Wide Gap 5/8" (15.9mm)
Housing:
Nylon & ABS
Color:
Black, Brown, White, and Gray
Electrical Specifications:
Max Current: 0.25A Resistive
Max Voltage: 30 VDC
Max Power: .25 W Resistive
Connection:
Intended for connection to UL Listed compatible control panels for U.S. applications and a ULC Listed compatible control panel for Canadian applications
#22 AWG:
12″ [30.5 cm] Leads

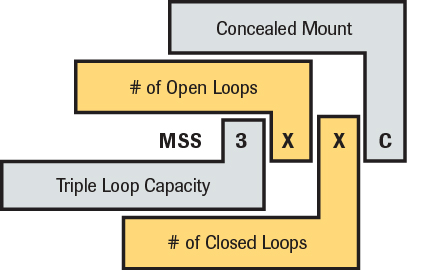

Nomenclature:
MSS-300C Recessed / Concealed Contact 1″ x 3/4″
