MSS-106S
Closed Loop
MSS-106S
The Magnasphere MSS line is the solution to the failures of reed switch contacts. With its distinctive all-metal switch design, it resists contact welding and magnet attacks, and holds UL, ULC and CE certifications. Overhead Door Contact – Rail Mount – closed loop – grey
Overhead Door Contact – Rail Mount – closed loop – grey

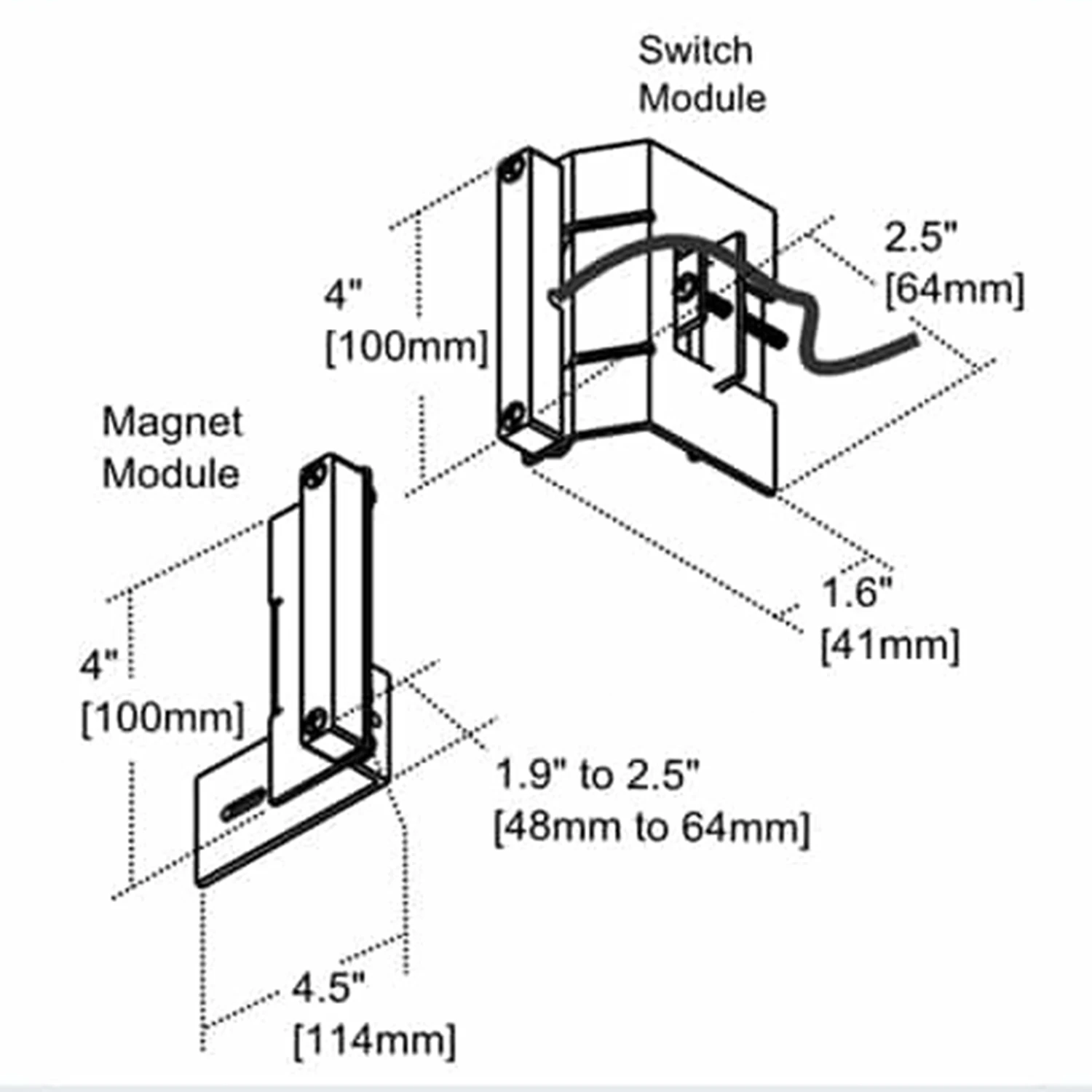

Specifications and dimensions
Max Gap:
MSS-106S: 3/8" (9.7mm)
MSS-105S: 1/2" (12.7mm) Open loop
Switch / Magnet Module Size:
4″L x 1/2″W x 1/2″H][break][/break] [100 mm L x 13 mm W x 13 mm H]
Colors:
Gray
Electrical Specifications:
Max Current: 0.25A Resistive
Max Voltage: 30 VDC
Max Power: .25 W Resistive
Configuration: Open Loop or Closed Loop w/ Target Magnet in Place
Jacketed Leads:
60″ [152 cm] Leads OR 18″ & 36″ Armored Cable
MSS Overhead Door Switches 4″ x 1/2″ x 1/2″
Installation Instructions
Installation Accessories
Architects & Engineering Specifications
Configuration Manual
Firmware
Information
Wiring Schematics
Features
- Made with MAGNASPHERE Switch Technology
- Won’t break
- Resistant to contact welding
- Resistant to outside defeat
- OHD side rail mounting
- Cost competitive
- Increase RMR
- UL and ULC listed, CE Certified
- Available with EOL Resisters Contact Factory
- Made in America
