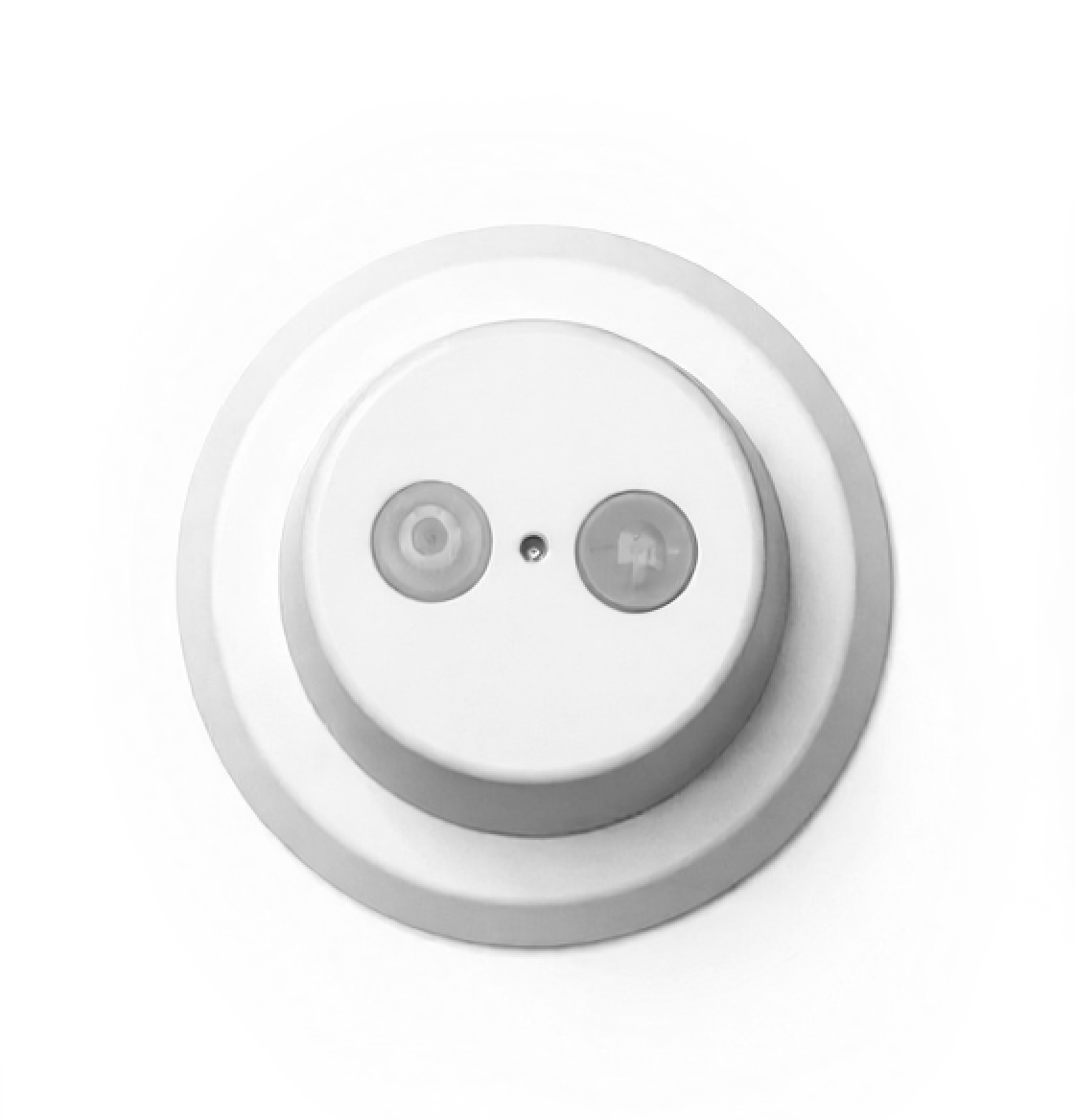

Ceiling-Mount People Sensor PIR360
The Magnasphere Ceiling-Mount People Sensor is a sophisticated motion sensor that operates via infrared sensor fusion and fine tuned algorithms to achieve exceptional range and accuracy. Its advanced LED interface, built-in End-of-Line resistors and intelligent design ensure streamlined installation in any environment.
Summary of features
Usage
Indoor or outdoor motion sensor
Detection method
Passive Infrared
FOV
Horizontal: 360º
Maximum range (detection of persons)
59 ft (18 m) at 20 ft (6 m) height
Mounting height
8 ft to 20 ft (2.4 m to 6 m)
Alarm relay duration
4 seconds
Alarm BLIND TIME
1 second
Power
6 - 24 VDC 100 mA (typical) at 12V (LEDs ON) 40 mA (typical) at 12V (LEDs OFF
Operating temperature
-4 to 140 °F (-20 to 60°C)
Dimensions (unit)
3.55 x 3.55 x 1.85 in, 90 x 90 x 46.5 mm
Certifications
Standard for Intrusion-Detection Units - UL639 [USA], TAA compliance
